FLASHINGS

Max PVC Universal Corner

Molded from unsupported PVC, MAX PVC inside / outside corners are universally designed for flashing both inside and outside corners on curbs, parapets, and scuppers.

Max PVC Inside/Outside Corners

Made with reinforced PVC, Elevate MAX PVC inside and outside corners are factory-formed for use at curbs, parapets, scuppers, and other roof transitions where watertight corner flashings are required.

Max PVC Square Tube Wrap

PVC tube wraps feature an integrated overlap to easily encase square or rectangular tubing for a secure, solid weld. They streamline the installation process by eliminating complex field-fabrication while ensuring a professional, watertight finish.

Sizes Available:

• 4” x 4” x 8” (101.6 mm x 101.6 mm x 203.2 mm)

• 6” x 6” x 8” (152.4 mm x 152.4 mm x 203.2 mm)

MAX PVC Corner Curb Wrap

Elevate PVC Curb Wrap Corners are prefabricated flashings designed to reduce installation time and labor costs compared to traditional field-fabrication. Constructed from durable 60-mil reinforced PVC membrane.

Sizes Available:

• 7”, 13”, 19”, 25”, 31”, 37”

MAX PVC Universal Pipe Boot

Elevate MAX PVC Universal Pipe Flashing is specifically designed for the flashing of round penetrations and fits various penetrations from 1” (25 mm) to 6” (152.4 mm). The Elevate PVC Universal Pipe Flashing must be cut to the correct size before installation.

MAX PVC Split Pipe Boot

Elevate MAX PVC Split Pipe Boots are factory-fabricated flashings made from PVC. The split boot is specifically designed for flashing round penetrations.

Sizes Available:

• 1” - 3” (25.4 mm – 76.2 mm)

• 3” - 6” (76.2 mm – 152.4 mm)

• 9” - 11” (228.6 mm – 279.4 mm)

MAX PVC Unsupported T Joint Cover

MAX PVC Unsupported T-Joint Cover

Unsupported PVC T-Joint Covers are flexible, circular patches designed to reinforce seam intersections where three layers of membrane meet. Lacking an internal fabric mesh, they are highly malleable and conform easily to the uneven step-off at T-joints.

Sizes Available:

• 4” (101.6 mm)

MAX PVC Reinforced T-Joint Cover

Reinforced PVC T-Joint Covers are flexible, circular patches designed to reinforce seam intersections where three layers of membrane meet. Lacking an internal fabric mesh, they are highly malleable and conform easily to the uneven step-off at.

Sizes Available:

• 4” (101.6 mm)

• 6” (152.4 mm)

Elevate PVC Unsupported Flashing

Elevate PVC Unsupported Flashing is a non-reinforced PVC membrane made with DuPont Elvaloy® KEE, used in roofing applications where Elevate preformed PVC accessory products are not appropriate.

Sizes Available:

• 24” x 50’ Roll (610 mm x 15.2 m)

MAX PVC Metal Pitch Pan

Elevate MAX PVC metal pitch pans provide a watertight seal around rooftop penetrations. Each pan ships with one corner open for installation around existing penetrations.

Sizes Available:

• 6" x 6" x 4" (152.4 mm x 152.4 mm x 102 mm)

• 8" x 8" x 4" (203.2 mm x 203.2 mm x 102 mm)

MAX PVC Vinyl Rib

Elevate MAX PVC vinyl ribs are designed to simulate the look of a standing seam metal roof. Installed after the roofing system, ribs provide a durable and attractive alternative to metal panels. Each rib is extruded PVC. Sections may be joined as needed.

Sizes Available:

• 1.375” (34.93 mm) base width, 1” (25.4 mm) tall, 10’ (3.05 m) lengths

MAX PVC Clad Metal

Elevate MAX PVC clad metal is a sheet of 24-gauge, G90 galvanized steel laminated with a 17-mil PVC film. The PVC surface allows for hot-air welding to MAX PVC membranes when incorporated into roof details.

Sizes Available:

• 4’ x 10’ (1.2 m x 3.05 m)4’ x 10’ (1.2 m x 3.05 m)

FLASHINGS DOCUMENTS

tapes and strips

MAX PVC Safety Strip

Elevate MAX PVC yellow safety stripping is a bright yellow PVC membrane strip used to mark safety warning lines on roofs. Constructed with laminated PVC film and weft-inserted polyester reinforcement.

Sizes Available:

• 6” x 100’ (152.4 mm x 30.48 m)

Reinforced Cover Strip

A flexible PVC sheet with polyester weft-inserted reinforcement, designed for sealing and protecting fastener rows and membrane seams. it meets ASTM D 4434 Type III standards and is heat-weldable for low-slope applications. May be adhered, fastened, or induction welded to substrates.

Sizes Available:

• 3" x 100' Roll (76..2 mm x 30.5 m)

• 8" x 100' Roll (203.2 mm x 30.5 m)

TAPES AND STRIPS DOCUMENTS

ADHESIVES AND SEALANTS

WHITE ONE PART POURABLE SEALER

White One-Part Pourable Sealer

An easy-to-dispense White One-Part Pourable Sealer, packaged in resealable pouches, designed to seal penetrations inside penetration pockets where allowed by Elevate details. This liquid-applied membrane is suitable for roof flashings on TPO, EPDM, APP, SBS, and BUR roofs. It may be used to fill penetration pockets on PVC roofs (do not apply as a liquid flashing on PVC).

Sizes Available:

• .53 Gallon (2 L) pouch

• 4 Pouches per Carton

LAP SEALANT HS

Lap Sealant HS

Elevate Lap Sealant HS is a low volatile organic compound (LVOC) sealant designed to be used with approved Elevate primers for seam edge treatment applications, and as a sealant in other applications as indicated by current Elevate Specifications and Details. Available in White and Black.

Sizes Available:

• 11 fl oz Cartridge (325.3 mL / Plastic Pail)

• 11 fl oz Cartridge (325.3 mL / Cardboard Carton)

EcoWhite Lap Sealant:

• 10.3 fl oz Cartridge (300 mL)

POURABLE SEALER S 10

Pourable Sealer S-10 (Part A & Part B)

Pourable Sealer S-10 is designed for sealing penetration pockets used in conjunction with Elevate roof systems.

Sizes Available:

• Part A: 1 Gallon (3.78 L) Can

• Part B: 1 Pint (.47 L) Can

PVC Clear Cut Edge Sealant

PVC Clear Cut Edge Sealant

Elevate PVC Clear Cut Edge Sealant is an optional treatment used for sealing cut edges of the PVC, PVC KEE and MAX PVC membranes where scrim reinforcement is exposed.

PVC LVOC Bonding Adhesive

Elevate PVC LVOC Bonding Adhesive is a bonding adhesive designed for bonding Elevate PVC, PVC KEE and MAX PVC membranes and flashings to wood, metal, masonry, and other acceptable substrates.

PVC Water Based Bonding Adhesive (WBBA)

Elevate PVC Water Based Bonding Adhesive is designed to adhere Elevate PVC, PVC XR, PVC KEE XR, MAX PVC and MAX PVC XR membranes and flashings to wood, metal, masonry, and other acceptable substrates. Elevate PVC Water Based Bonding Adhesive is not approved for use with Elevate PVC KEE (non-fleece) membrane.

I.S.O Spray R Adhesive

Elevate I.S.O. Spray R Adhesive is a two-component low rise polyurethane adhesive engineered to adhere fleece-backed Elevate PVC XR, PVC KEE XR and MAX PVC membranes to acceptable substrates. Elevate I.S.O. Spray R Adhesive is mixed and dispensed by high or low-pressure pump/proportioning units capable of mix/meter/dispensing two-component polyurethanes in full spray application and/or continuous bead extrusion.

XR Stick Membrane Adhesive

Elevate XR Stick Adhesive is a two-component, low-rise polyurethane adhesive designed to attach Elevate PVC XR, PVC KEE XR and PVC MAX XR fleece-backed roofing membranes to a variety of acceptable substrates as allowed by Elevate specifications. XR Stick (cartridges) can be dispensed using various Elevate approved hand or multi bead electric dispensing units.

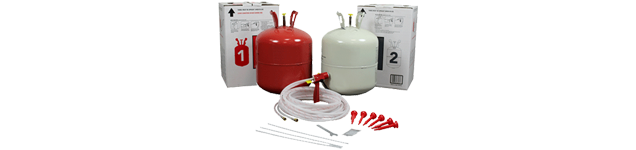

Twin Jet

Twin Jet is a pressurized two-component, LVOC, low-rise polyurethane adhesive applied in a bead pattern for the attachment of Elevate-approved roof insulations. It may also be applied in bead or spatter pattern for the attachment of Elevate PVC XR, PVC KEE XR, or UltraPly TPO XR membranes to acceptable horizontal substrates, per Elevate specifications.

VIEW ADDITIONAL INFORMATION

Twin Jet Y

Twin Jet Y is a pressurized, two-component, low-VOC, low-rise polyurethane adhesive approved for board-to-board applications and membrane attachment. It can be applied in bead or spatter pattern for the attachment of Elevate-approved roof insulations, as well as UltraPly TPO XR, PVC XR, PVC KEE XR, and MAX PVC XR membranes to acceptable horizontal substrates, in accordance with Elevate specifications. Twin Jet Y features an HFO propellant compliant with all U.S. state and Canadian regulations.

VIEW ADDITIONAL INFORMATION

Jet Bond PVC

Elevate Jet Bond PVC is a Low VOC sprayable bonding adhesive designed for portability and ease of-use. It’s a versatile product that requires minimal flash off time. Jet Bond PVC adheres standard Elevate PVC and MAX PVC (non-fleece) membranes to multiple substrates. Jet Bond PVC is not approved for use with Elevate PVC KEE membranes. It’s perfect for contractors who are looking for a more convenient alternative to traditional roll-on applications.

ADHESIVES AND SEALANTS DOCUMENTS

PRIMERS AND CLEANERS

SPLICE WASH SW 100 CLEANER

Splice Wash SW-100

Splice Wash SW-100 is designed to clean and prepare Elevate single-ply membranes to be welded or to receive Elevate Primers, Adhesives, or Sealants as noted in Elevate Specifications and Details. This product is not intended for use with PVC or PVC KEE membranes.

Sizes Available:

• 5 Gallon (18.9 L) Pail

PRIMERS AND CLEANERS DOCUMENTS

walkway pads

PVC Walkway Pad Roll

A reinforced PVC walkway pad roll designed to protect roofing membranes in high-traffic areas. The textured surface provides slip resistance, while the smooth bottom allows for secure heat-welded installation to PVC roof systems.

Sizes Available:

• 2.5’ x 60’ Roll (762 mm x 18.3 m)
