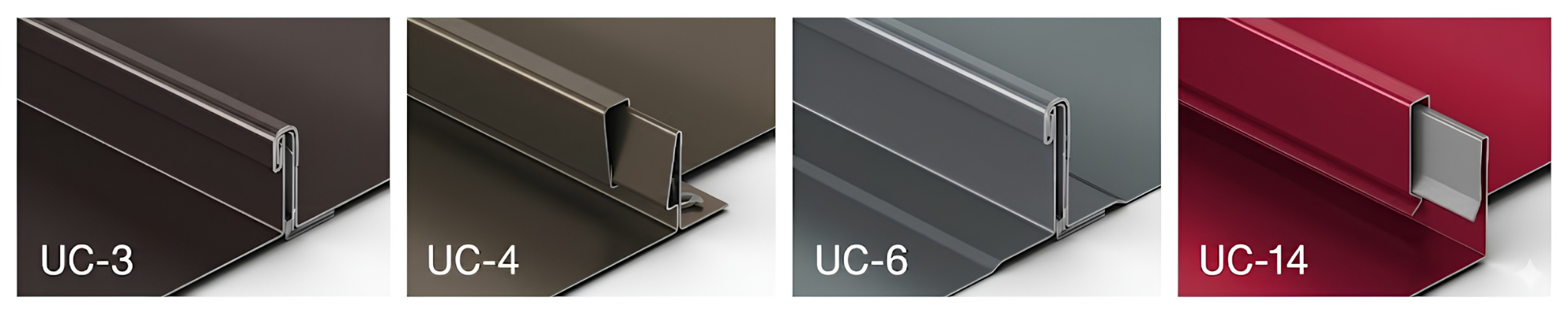

Elevate is proud to announce that UC-3, UC-4, UC-6, and UC-14 architectural metal roofing systems are now eligible for up to a 35 Year Red Shield Platinum Warranty! To be eligible for this industry-leading 35 Year warranty term, panels must be factory-formed and installed by a licensed Elevate applicator according to Elevate specifications. There are no additional installation requirements for 35 years, but a minimum slope of 3:12 will be strictly enforced.
Please see the updated UNA-CLAD Metal Design Guide, QuickSpecs, and installation details in the Documents section of our website for additional information. The Elevate PIN Site has been updated to reflect this exciting new warranty availability.
| 30-35 Year Red Shield Platinum Warranty Criteria | |
|---|---|
| Panel Material: | Min. 22 Ga. Painted Steel; .040″ Painted Aluminum; 16 oz Copper¹ |
| Minimum Slope: | 3:12″ |
| Structural Deck: | 22 Ga. Steel; ½″ Plywood; 7/16″ OSB; 1″ Wood Plank or Tongue & Groove |
| Insulation: | ISOGARD GL/ISO 95+; ISOGARD CG/Resista™; ISOGARD HG |
| Attachment: | Elevate Stainless Steel Fasteners & Clips Required |
| Underlayment: | CLAD-GARD™ SA with double-layer detailing at all critical areas² |
| Details: | Elevate 30-35 Year Platinum UNA-CLAD details |
| Submittals: | Shop drawings, specifications, and Pre-Installation Notice (PIN)³ |
| Inspections: | Job Startup, Interim, and Final Inspections required |
1. Anodized Aluminum and Mill Finish are not eligible.
2. Includes penetrations, valleys, ridges, and edges.
3. A certified Engineer's report is required for all Metal installations requiring wind speeds greater than 80 MPH, with a maximum wind speed of 110 MPH.
